Basic Info.
Model NO.
BP1000
Compatible Brand
OEM
Carrying Way
Portable
Charging Type
AC Car Solar Charging
Applicable Models
Rich Application Scenes
Cell Type
LiFePO4 Lifep04 Battery
Display
With Display
LED Lighting
4W
Socket Type
Universal
Recyclable
Recyclable
Output Power
1000W
Plug Type
Universal

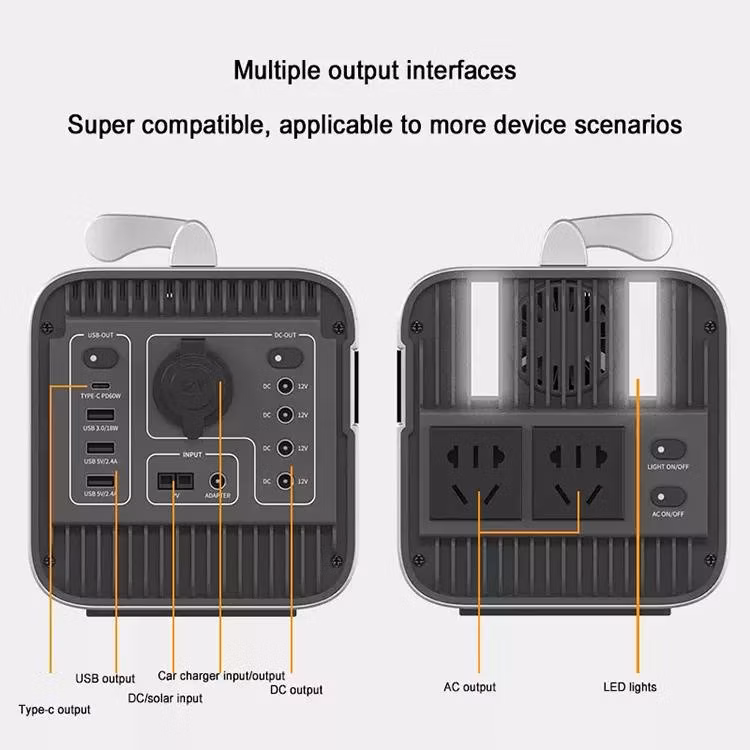

Output
Type-C+USB+AC+LED
Input Rated Voltage
18V
Transport Package
Carton
Specification
296*150*180
Trademark
oem
Origin
China
HS Code
8504409999
Production Capacity
10000 Unit/Units Per Month
Product Description
Portable Storage System USB Type 600W For Outdoor Camping
| Input | Specification | |
| Anderson Charging input performance | Input rated voltage | 18V |
| Input voltage range | 11.9V--26.2V | |
| Maximum continuous charge current | 10A | |
| Maximum Input power | 120W | |
| Reverse connection protection | OK | |
| | | |
| DC Charger parameters (standard accessories) | Input voltage | 100V-240V |
| Input frequency | 50Hz/60Hz | |
| Static power consumption | 0.3W | |
| Output voltage | 22V | |
| | | |
| Working temperature | - 10ºC--45ºC | |
| Working humidity | 5%--95% | |
| Output wire length | 1.2m | |
| Output | Specification | |
| | Output voltage | 5V±5% |
| Ripple noise | 150mVp-p | |
| Output rated current | 2.4A | |
| Output overcurrent protection | 2.55A | |
| Full load efficiency | 85% | |
| Output short circuit protection | OK | |
| | Port protocol | Apple 2.4A ,Samsung-5V-2A ,DCP- 1.5A, QC2.0 , QC3.0Samsung-AFC-9V- 12VHuawei-FCP-9 V- 12V-24W ,Huawei-SCP. |
| Output voltage | 5V/9V/ 12V±5% | |
| Ripple noise | 150mVp-p | |
| Output rated current | 5V/3A,9V/2A, 12V/ 1.5A | |
| Output overcurrent protection | 1.65A | |
| Full load efficiency | 85% | |
| Output short circuit protection | OK | |
| Type-C Output port parameters | Port protocol | PD 60,DCP 1.5A,Apple 2.4A,QC 3.0,QC 2.0; |
| Output voltage | 1V±5% | |
| Ripple noise | 150mVp-p | |
| Output rated current | 3.0A | |
| Output overcurrent protection | 3.1A | |
| Full load efficiency | 85% | |
| Output short circuit protection | OK | |
| AC output port parameters | Output voltage | 220V±10%&110V±10% |
| Output voltage frequency | 50Hz±2Hz/60Hz±1Hz | |
| Output waveform | Sine wave | |
| Rated Output Power(AC) | 600W | |
| Output short circuit protection | OK | |
| | | |
| Full load efficiency | 91% | |
| Overload protection | 700W | |
| Inverter over temperature protection | 80ºC | |
| DC12V (5.5*2.1mm) ,Cigarette lighter output port parameters | Output voltage | 12V- 13.4V |
| Output rated current | 10A | |
| Output overcurrent protection | 13.5A | |
| Full load efficiency | >85% | |
| Output short circuit protection | OK | |
| Temperature protection | Specification |
| Discharge high temperature protection | 55ºC±5ºC |
| High temperature protection during charging | 50ºC±5ºC |
| Discharge low temperature protection | - 10ºC |
| Charging low temperature protection | -0ºC |
| Storage temperature | -20ºC-60ºC |
| Working temperature | - 10ºC-45ºC |
| Sleep current | ≤500uA |
