Basic Info.
Model NO.
OX-DS9
Sensor
CCD
HDMI Format
1080P
Horizontal Resolution
420tvl
Kind
Manual Focus Lens
Certification
CE, FCC, CCC, RoHS, ISO9001: 2000
Effective Distance
≧30m
Sensor Size
1/3 inch
Remote Control
With Remote Control
Operation System
Windows
Screen
Without Screen
Power Supply
AC Power Source 110-220V AC
Hard Disk
Hard Drive 2t /4t/ 6t /8t Hard Drive
Feature1
Charging and Data Downloading From Body Cameras
WiFi
2.4G WiFi Iee802.11b/G/N
Speaker
Two 8 Ohm 3W Speaker
Housing
Full Metal Frame
Warranty
2 Years
Charging Ports
8 Ports
Transport Package
Wooden Box
Specification
36CM*26CM*12CM
Trademark
Ouxiang
Origin
Shenzhen, China
Production Capacity
10000PCS/Month
Product Description

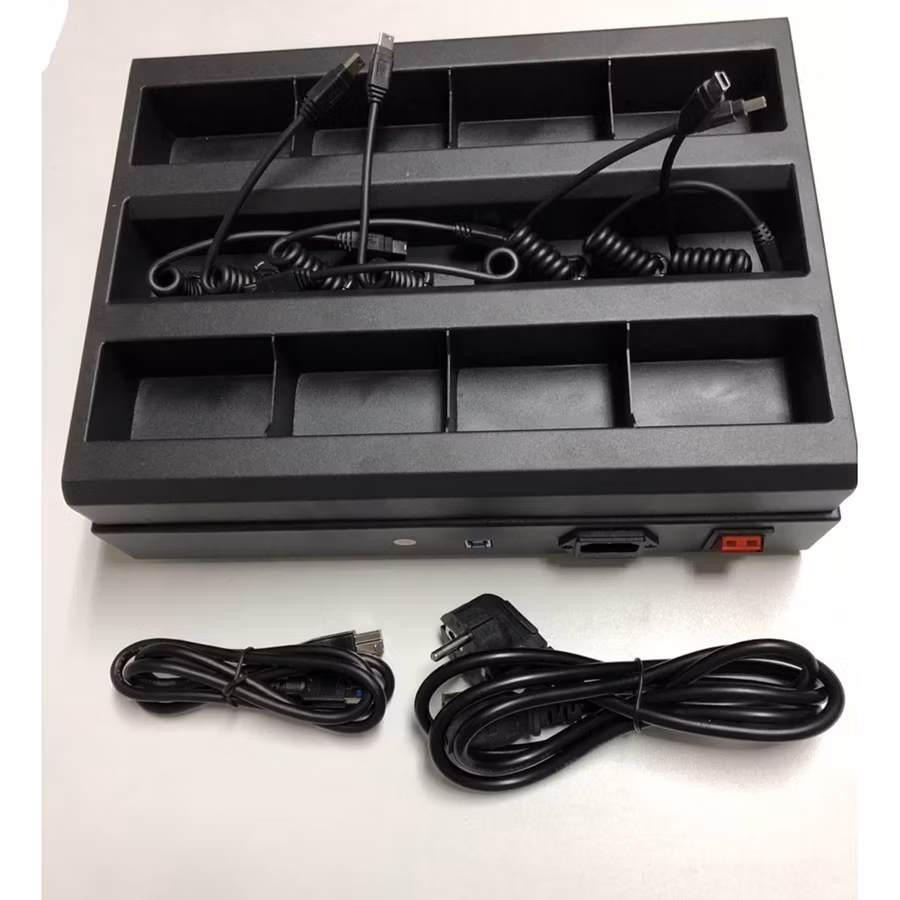

8 ports docking station aluminum charging base for body camera recorder
Features
- Automatic identification system
- Automatic data downloading
- Multi body worn cameras charging and uploading data at the same time
- 8 Ports docking station without system and storage, The software need to be installed via connecting to PC/ computer.
- Automatic synchronization charge
- Automatic copy and empty the data from law enforcement recorder
- Output terminal own double protection; protect the device, support overload power voltage and instant current protection function. Effective protect the device and collection station.
- Full metal frame, durable and concise appearance, unleaded painting.
- Support hotplug without driver, easy operating and carrying. Realize unattended operating and quickly uploading
Detailed Images
Specification
Specification
| Body size | 32*24*9.2cm / 8 usb ports |
| LCD Size | No screen |
| Morthboard | J1900 Industrial Motherboard |
| Power | Industrial power supply output rating 85W |
| USB interface | 8 usb ports HUB output current 1.2A for every port |
| Ouside USB interface | 2 USB2.0 ports |
| Audio | ALC662 chip,supply 6 channel output |
| Speaker | two 8 OHM 3W speaker |
| Work temperature | subzero 20 ---+80 degree temperatures, |
| Storage Temperature | subzero 20ºC--60ºC |
| Storage Humidity | Humidity:10%~90% |
| Power cable/adapter | European standard, American Standard, British Standard for option |
| Power supply | AC power source 110-220V AC |
| Operation system | Default optional XP/Win8/Win10 the system Win7 system |
Company Information
We are a high-tech corporation was founded in Sep of 1998, with 300 staffs, and a factory of 5000 quare meters, engaging in Security Products Area. For more than 10 years, We have been specializing in R&D, Designing, manufacturing & selling security products- Body worn cameras, Safety helmet cameras, PIR floodlight battery cameras, wifi video doorbells to all over the world.
Approved CE, Rohs, FCC, UL, ISO9001, CCC etc. Stable quality and professional service have won kinds of long time cooperation agents and distributors.
Our Services
Our products warranty is 1 year, we provide 2 years warranty for our long term cooperation clients.
We provide free repairing or replacement of products if the goods have any quality problem within the Warranty period.
We provide durable maintenance and Tech support service.
We will work with you to solve any problems.
OEM Sevice:
Custom Development.Products can be customized according to your request and support solution of product include hardware and software.
Welcome you to contact us!
