Basic Info.
Model NO.
JML-PA09012FD-PU015
Certification
TUV, RoHS, UL FCC CE CB
Color
Black
Type
ODM
Connection
Plug In
Input
100-240V, 50-60Hz
Output USB-C1
5V/9V/12V/15V3a, 20V3.25A
Output USB-C2
5V3a/9V2.22A/12V1.67A
Output USB-A1/2/3
5V2.4A(Max)
Output USB-A4
5V3a/9V2a/12V1.5A
Output USB-a
5V2.4A Max
Output Power
100W Max
Aging Test
100%
Protection
SCP/Ocp/Ovp/Otp
Warranty
Two Years
Transport Package
Carton Box
Specification
128*104*30mm
Origin
China
HS Code
8504401990
Production Capacity
1000000pieces/Year
Packaging & Delivery
Package Size
18.00cm * 11.00cm * 5.00cm
Package Gross Weight
0.296kg
Product Description
- Enables simultaneous charging of up to six USB devices
- Featuring both USB-C and USB-A ports
- Universal AC input/Full range(up to 264Vac)
- Small Size: 128*104*30mm
- Operating Temperature: -10ºC to 40ºC,Full load, Normal operation
- Protection: Short Circuit/Over Current/Overshoot
- High efficiency
- 100% full load burn-in test
- Meet UL FCC CE RoHS CB Approved
- At 25ºC,in full load,the life will more than 20,000 hours
- Two years warranty

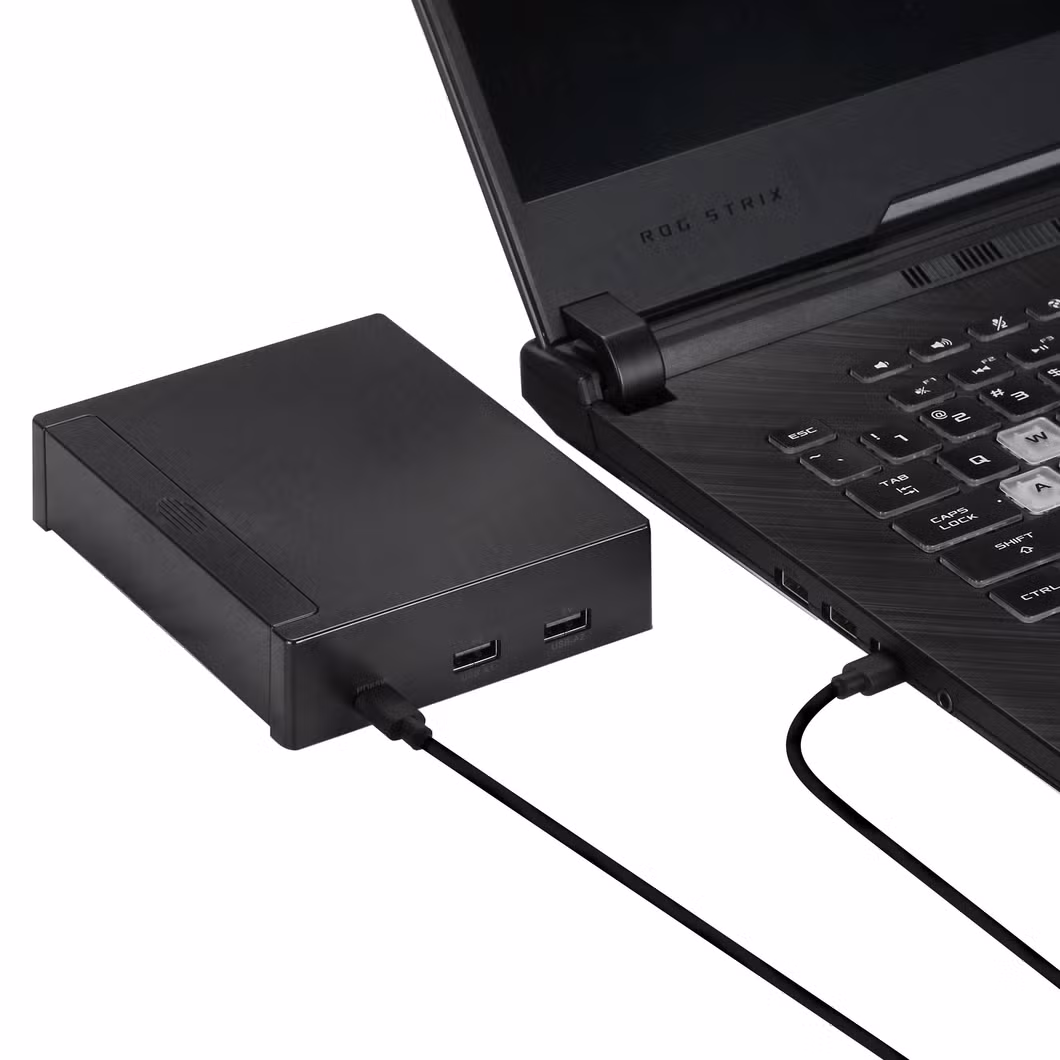

Products Show:
Products Size:
6-Port USB Charging:
Product parameters:
| Product Name | 6-Port USB Charging Station Power Adapter 100W Max |
| Input | 100-240V,50-60Hz |
| Output USB-C1 | 5V/9V/12V/15V3A,20V3.25A |
| Output USB-C2 | 5V3A/9V2.22A/12V1.67A |
| Output USB-A1/2/3 | 5V2.4A(MAX) |
| Output USB-A4 | 5V3A/9V2A/12V1.5A |
| Output USB-A | 5V2.4A MAX |
| Output power | 100W Max |
| Certificate | UL FCC RoHS CE CB |
| Aging Test | 100% |
| Product Size | 128*104*30MM |
| Material | ABS&PC |
| Operating Temperature | -10ºC - 40ºC,Full load, Normal operation |
| Short Circuit Protection | Shall be protected when any output operation in circuit short condition, Over load |
| Over Current Protection | Yes |
| Over Voltage Protection | Yes |
| Warranty | Two years |

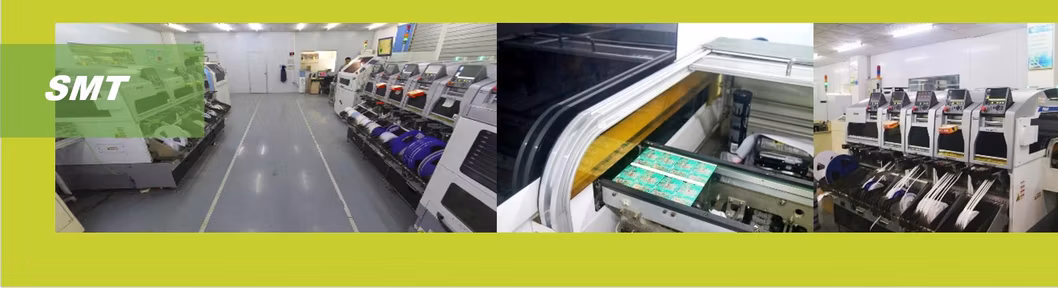

Production Workflow Chart

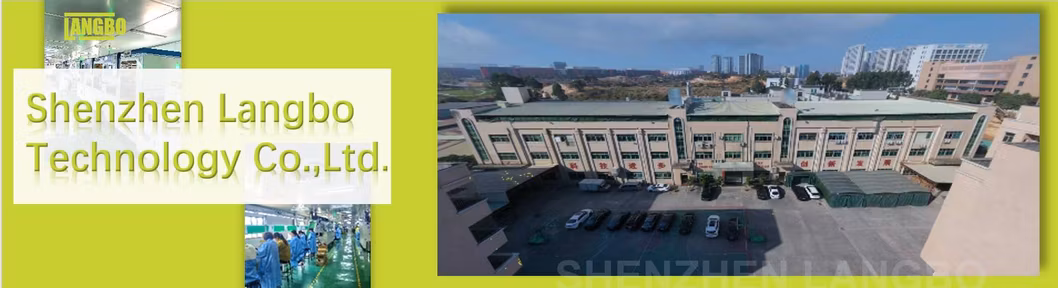

Welcome to visit our factory!
Warm Tips:
If you don't find the exact product which you need from our website,feel free to contact us directly,we have a professional technical team and service team,we have ability to customize your products according to your requirements!
