Basic Info.
Touch Screen Type
Resistive
Type
Graphic
Response Time
1ms
Viewing Angle
TN＋FILM
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven
LCD Drive Mode
Multiplex Drive LCD Module
Customized
Customized
Color
White
Weight
200g
Made
2023
Transport Package
Carton
Specification
200x200x200CM
Trademark
jinchao
Origin
China
Production Capacity
10000
Product Description
Overview
Essential details
Type:
Display Size:
Supplier Type:
Place of Origin:
Brand Name:
resolution:
viewing direction:
Can be customized:
Storage Temperature:
Brightness:
outline dimension:
AA:
driver IC:
Interface:
TFT, TFT
Display Size:
5inch
Supplier Type:
lcm
Place of Origin:
Guangdong, China
Brand Name:
Kingtech
resolution:
800x480
viewing direction:
12 O'clock
Can be customized:
OEM and ODM welcome
Storage Temperature:
-30ºC~80ºC
Brightness:
500nits
outline dimension:
120.7(W)*75.8(H)*2.9(T)
AA:
108(W)*64.80(H)
driver IC:
ILI6122+ILI5960
Interface:
24-bit Parallel RGB Interface
Supply Ability
Supply Ability
8000000 Piece/Pieces per Month
8000000 Piece/Pieces per Month
Packaging & delivery
Packaging Details
Carton
Port
shenzhen / hongkong
Picture Example:
Lead time:
Carton
Port
shenzhen / hongkong
Picture Example:
Lead time:
| Quantity(pieces) | 1 - 10 | 11 - 1000 | 1001 - 3000 | >3000 |
| Lead time (days) | 7 | 21 | 23 | To be negotiated |
For 10.1 inch, we have different models for customers choice. Such as 1280*800, 1024*600,800*1280, high temperature and brightness, normal temperature and brightness. MIPI, LVDS, RGB interface; USB and I2C capacitive touch, HDMI board For 10.1 inch, we have different models for customers choice. Such as 1280*800, 1024*600,800*1280, high temperature and brightness, normal temperature and brightness.

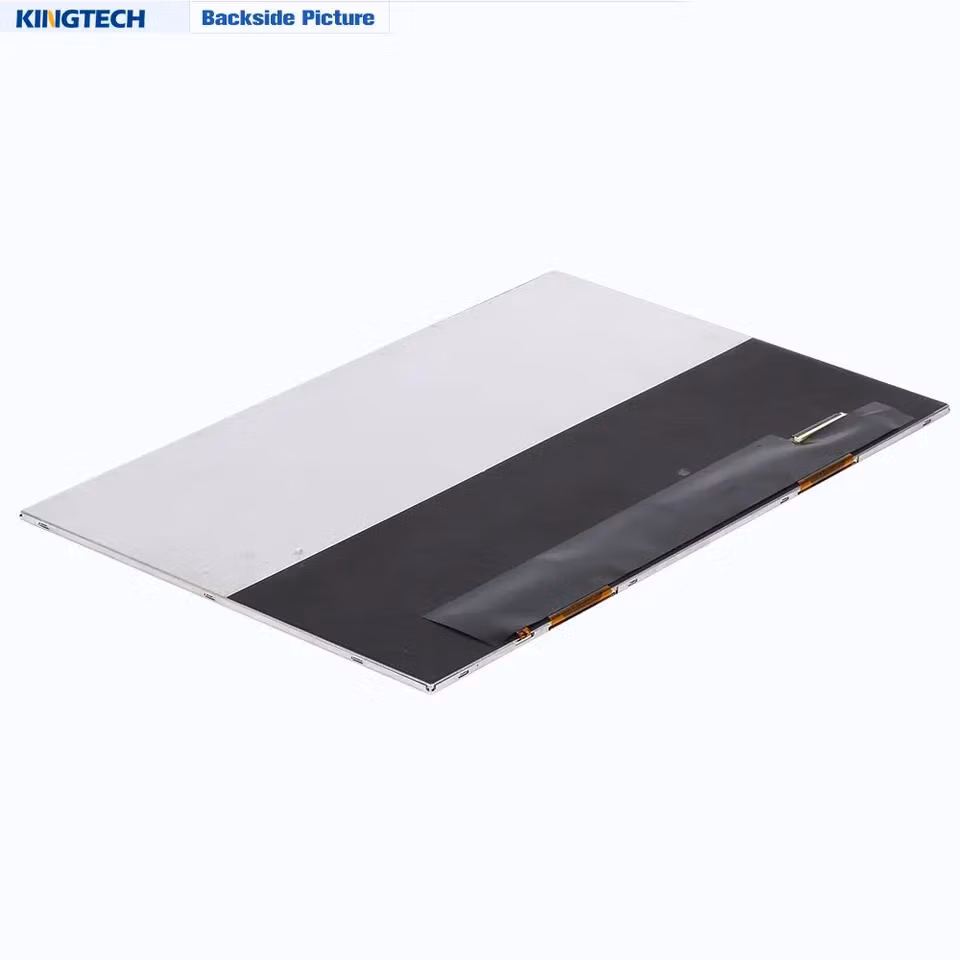

Product Description
| Module Display Main Parameters | |
| Item | kingtech 10.1 inch ips1280x800 display |
| Model No. | PV10109LZR40G |
| Resolution | 1280 x 800 |
| Outline Dimension | 229.80(W) x 149.00(H) x 5.95(T) |
| Active Area(mm) | 216.96(W) x 135.60(H) |
| Interface | 8-BIT LVDS Interface |
| Viewing Angle | All |
| LED life | 50000h |
| Display Mode | Transmissive / Normally Black |
| Operating Temperature | -30ºC to +80ºC |
| Storage Temperature | -30ºC to +80ºC |
| Brightness | 1000nits |
| Touch screen | I2C / USB capacitive touch screen |
| Board | HDMI board |

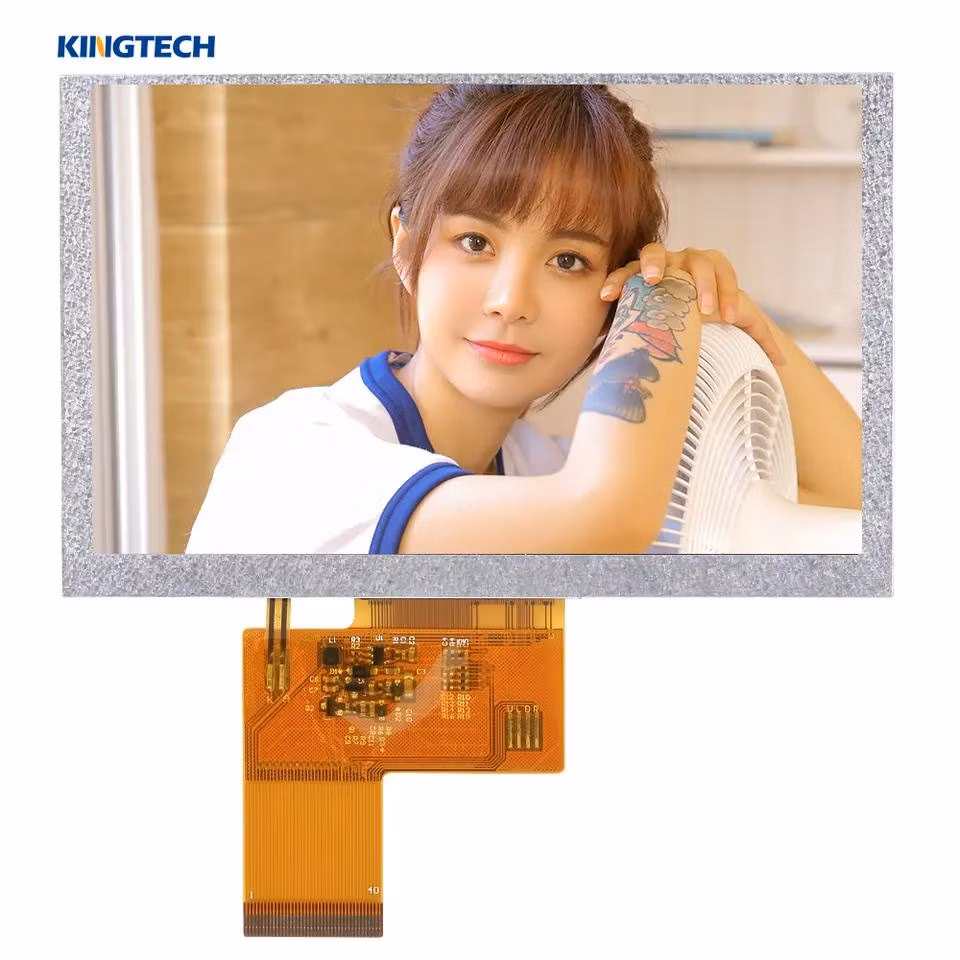

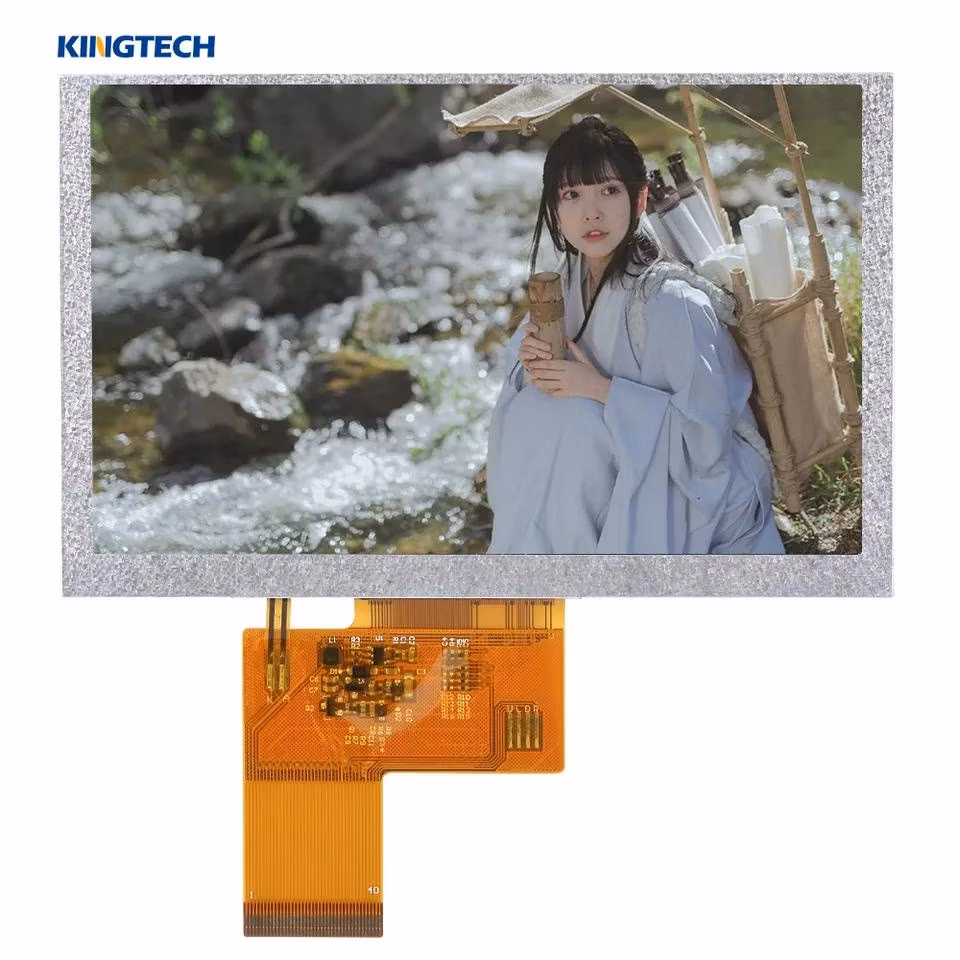

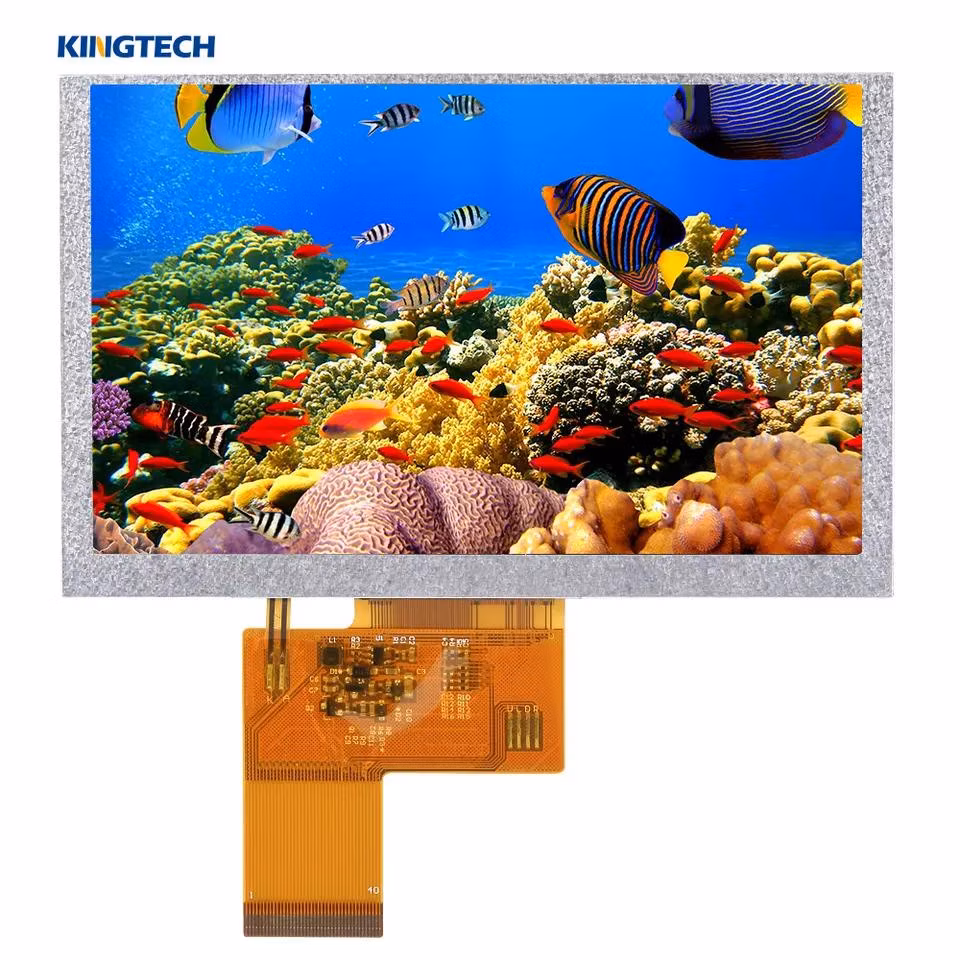

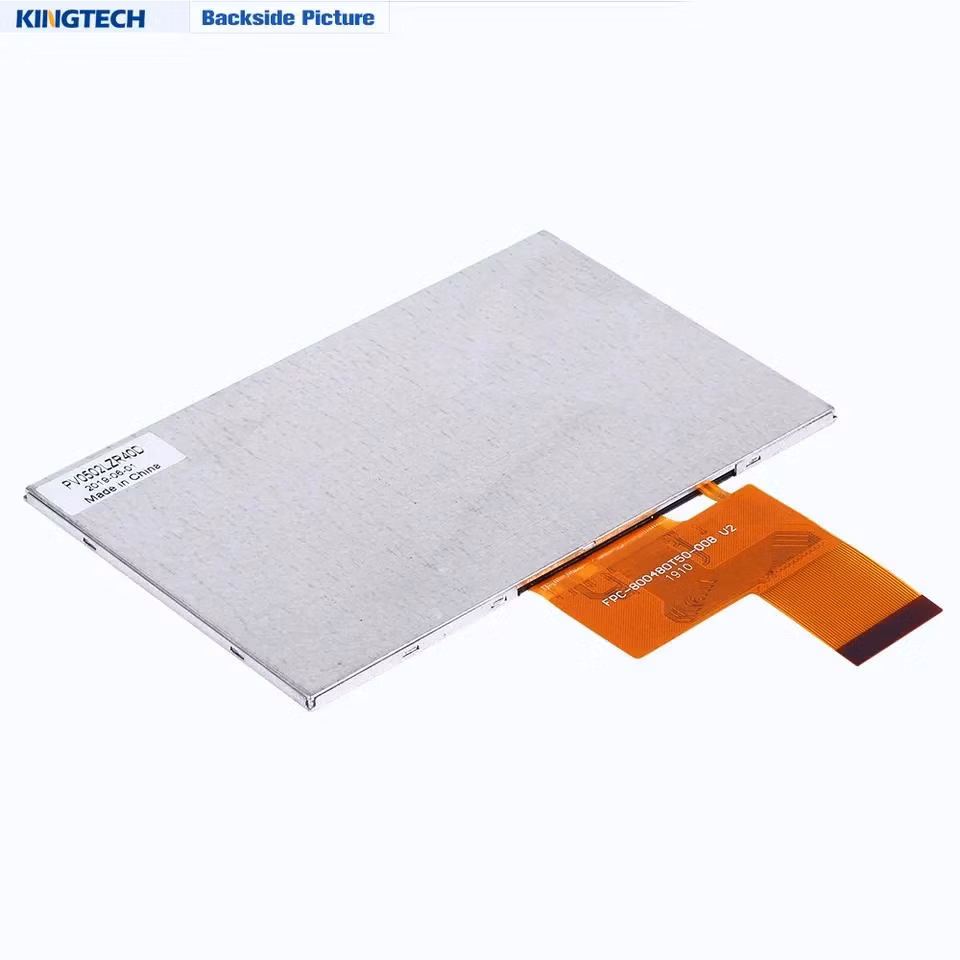

Product Description
| Item | 500nit/1000 nit 5 inch tft lcd display |
| Model No | PV0502LZR40D |
| Resolution | 800*480 |
| Outline Dimension | 120.7*75.8*2.9 |
| Active Area(mm) | 108*64.80 |
| Interface | 24-bit Parallel RGB |
| Viewing Angle | 12 o'clock |
| Driving IC | ILI6122+ILI5960 |
| Display Mode | Transmission / Normally White |
| Operating Temperature | -20ºC~70ºC |
| Storage Temperature | -30ºC~80ºC |
| Brightness | 500nits / 1000nits |
| Touch screen | Resistive / capacitive touch screen |
| Board | HDMI board |
