Basic Info.
Model NO.
KS6270 / E8270
Certification
CE
Voltage
12/24V
Car Name
Hyundai IX35/Tucson
CPU
AC8227L Quad-Core Arm Cortex-A7 4*1.5GHz
RAM
DDR3 2GB / 256m
Flash
Built in 16GB / 128m
Touch Screen
Capacitive Touch Screen
Radio IC
St Tda7786
Amplify IC
St Tda7388
out Power
4*45W
Bluetooth Version
4.0
Transport Package
Standard Export Carton
Specification
CE
Trademark
WITSON
Origin
China
HS Code
85287180
Production Capacity
80000PCS/Month
Product Description
For HYUNDAI Ix35/TUCSON
| K6270 | Quad-Core(4 core), ANDROID 10, 2G RAM+16G ROM |
| E8270 | Dual-Core (2 core), Windows 6.0,256 RAM+128 ROM |
---Main Function
CPU: AC8227L Quad-core ARM Cortex-A7 4*1.5Ghz
2G DDR3 RAM Memory
Built In 16GB Inand Flash
CAPACTIVE 1024*600 Screen(For 7 Inch and Bigger Screen)

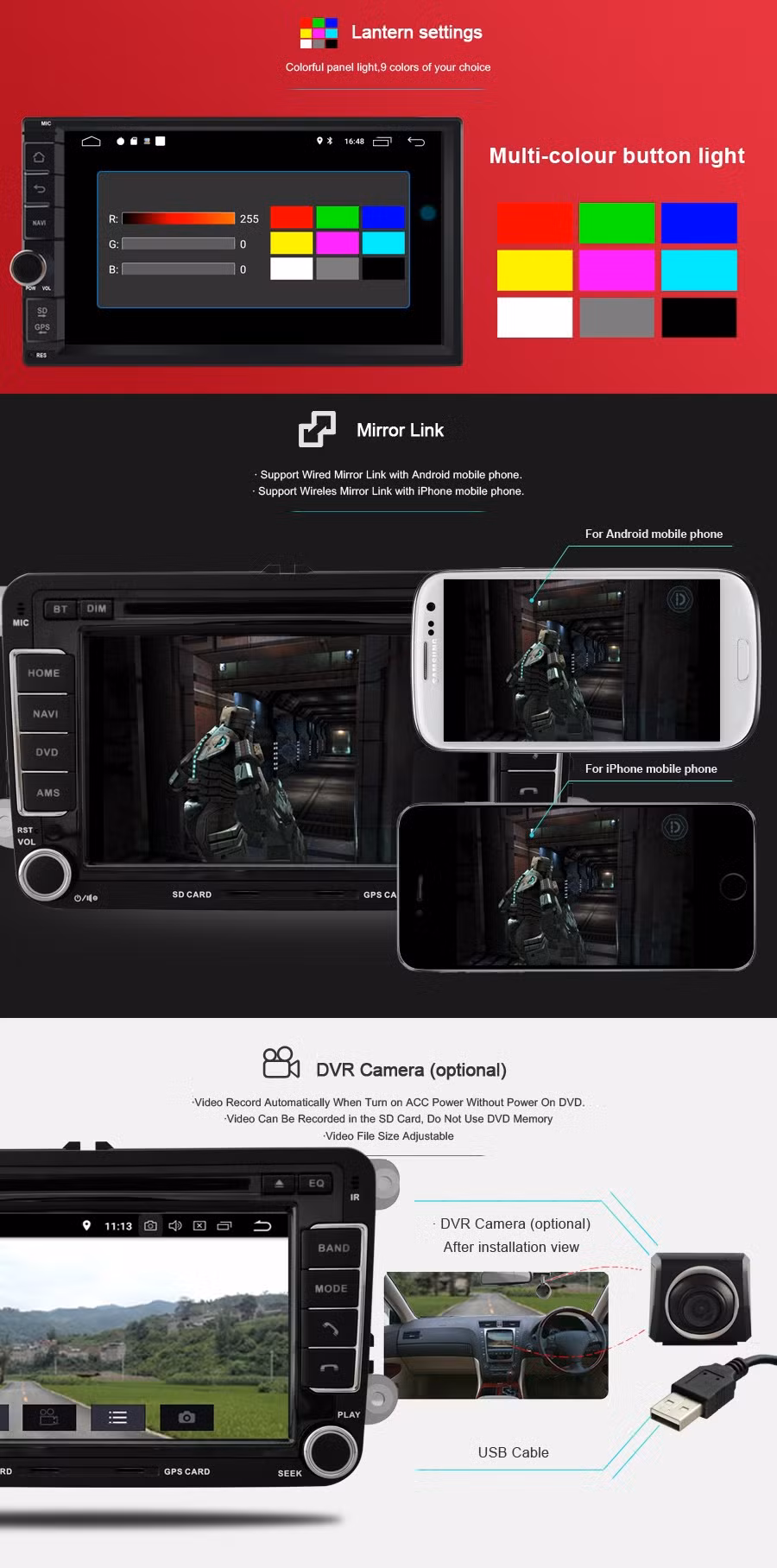

Mirror Link for Android Mobile+iPhone
1080P HD Video
Built-In WiFi Module
Support full Video output to sub-monitor like mirror link
External Microphone Included
Front and Rear Camera Can Work same time
ADAS Function (optional)
Built-in TPMS Function
Built-In DVR Function
Built-in DAB+ Function
Built-in OBD Function
| Configuration | |
| OS | Android 10 system / Windows Ce 6.0 |
| CPU | AC8227L Quad-core ARM Cortex-A7 4*1.5Ghz |
| RAM | DDR3 2GB / 256m |
| Flash | Built in 16GB / 128m |
| Video Decode Support | 1080P |
| Touch Screen | Capacitive touch screen |
| GPS | |
| Map | Stored in memory or SD card |
| Map Formate Support | Google map online, Sygic, IGO, 3D maps, etc. |
| Media Player | Yes |
| Card Supported | Micro SD Card |
| INTERNET | |
| SIM Card | Support |
| Wi-Fi/3G | Built in Wi-Fi Module/support External 3G Dongle |
| Android Apps Installation | Yes |
| Display Screen | |
| Screen Type | Digital TFT touchscreen |
| Resolution | 800*480 |
| Screen Dimension | 6.2 inch 16:9 |
| Wall Paper | Live wallpaper |
| GUI Interface | 3D Interface |
| Language | |
| Main Interface Language | English, Deutch, Franch, Portuguese, Spanish, Italian, Espanol,etc. |
| DVD Control Language | English,Francais,Spainish,Italian,Portuguese,etc. |
| DVD Playback | |
| Disk Format Supported | DVD-Video, DVD±R/RW, DVD-ROM, CD-DA, CD-ROM, CD-R, CD-RW |
| Media | DVD/DVD-R/DVD+R/DVD-RW/DVD+RW/CD/CD-R/CD-RW/MP3/MP4(DIVX)/VCD/SVCD |
| Bluetooth | |
| A2DP | Yes |
| Microphone | External Microphone |
| Received Call | Yes |
| Dialled Call | Yes |
| Missed Call | Yes |
| Download Contacts | Yes |
| Store Contacts | Yes |
| TV Tuner | |
| Built-in Analog TV | No |
| Analog TV System | N/A |
| Built-in DVB-T Tuner | Optional |
| DVB-T Format | MPEG-4,Support 120km/h, 1 x Active Antenna Included |
| Built-in ISDB Tuner | Optional |
| Radio | |
| AM Frequency Range | 522-1620 (Europe), 530-1710 (America) |
| FM Tuning Range | 87.5-108 (Europe), 87.5-107.9 (America) |
| RDS | Yes |
| Storage Media | |
| SD Card Slot For Music/Movie | Micro SD Card Slot |
| MAX Memory Supported 128GB | |
| USB Port For Music/Movie | Mini USB Port |
| MAX Memory Supported 128GB | |
| Video & Audio | |
| Video Input | 1-Channel RCA Input |
| Video Output | 2-Channel RCA Output |
| Audio Input | 2-Channel RCA Input |
| Audio Output | 4.1Channel RCA Output |
| Reverse Camera Input | Yes |
| 3 Zone Out | No |
| Other Functions | |
| 2-Zone | Yes (Listen Radio/CD While Watching GPS Image) |
| Pictrue In Pictrue | No |
| Steering Wheel Control Function | Yes |
| MFD | No |
| TMC | Optional |
| DVR | Optional |
| OBD | Optional |
| DAB | Optional |
| V-6 Disc Changer Memory | No |
| CDC | No |
| Parking Assistance | No |
| Game | Yes |
| Button Back Light | 7 Different Button Light-Green,Blue,Cyan,White,Yellow,Red,Purple |
| Accessories | |
| Power Cable*1,RCA Cable*1,GPS Antenna*1,USB Cable*1,4G Anternna*2 | |
