Basic Info.
Model NO.
E8242
Certification
CE
Voltage
12/24V
CPU
Mediatek Mt3360 Cortex A11 Dual-Core
RAM
256MB
OS
Windows Ce 6.0
Flash
128MB
Touch Screen
Capacitive Touch Screen
Radio IC
St7786 FM/Am
Amplify IC
St Tda7388
out Power
4*45W
Bluetooth Version
4.0
Transport Package
Standard Export Carton
Specification
CE
Trademark
WITSON
Origin
China
HS Code
85287180
Production Capacity
80000PCS/Month
Product Description
For HYUNDAI Ix25
| E8242 | Dual-Core (2 core), Windows 6.0,256 RAM+128 ROM |
Capacitive Touch Screen

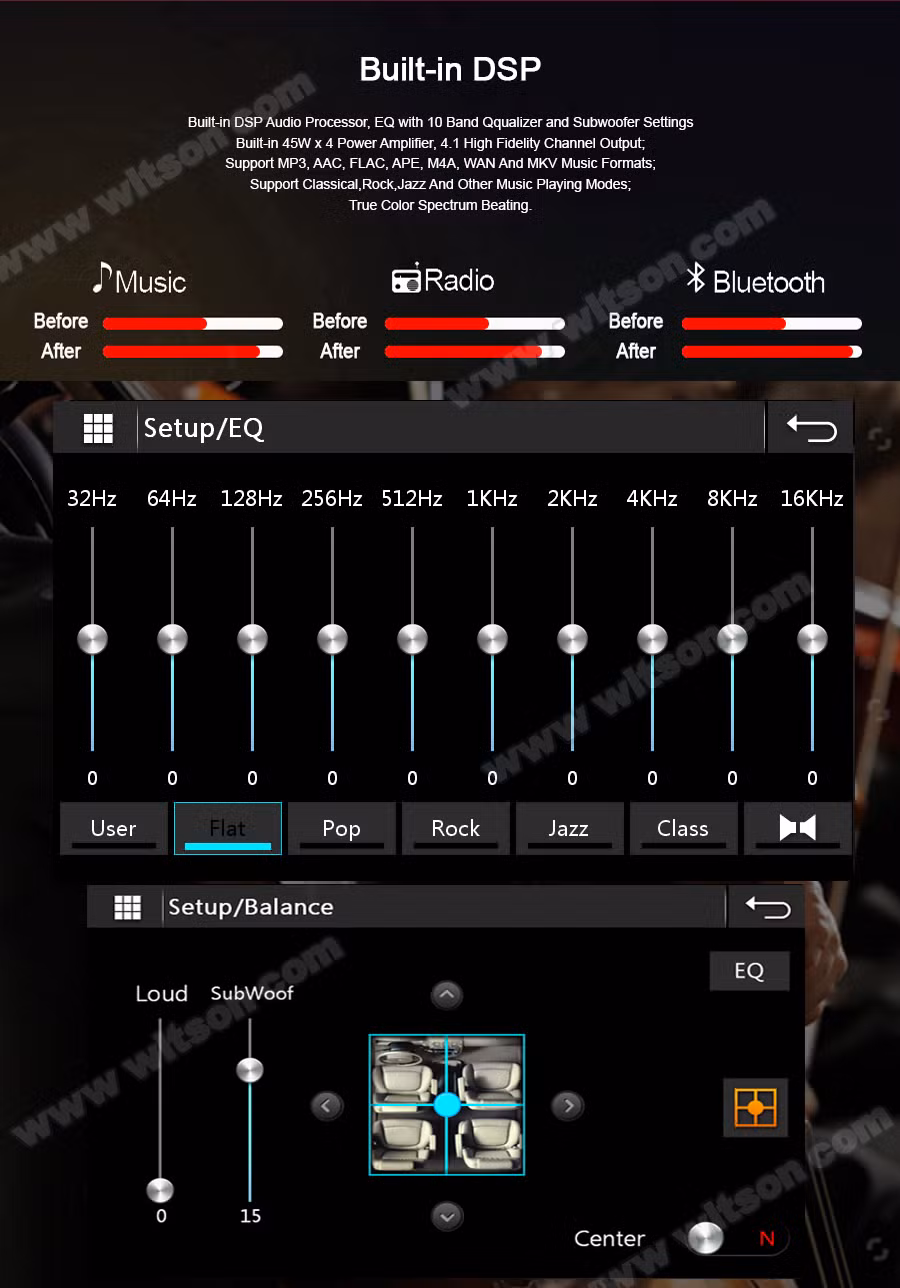

DSP Audio/4.1 channel Audio output
Front DVR Camera-Operate by Touch Screen of DVD (High Solution & Speed) (DVR Camera Optional-Click For Details)
Support External WIFI Receiver (Wifi Receiver Optional-Click For Details)
Support External 3G Dongle (3G Dongle Optional-Click For Details)
Support TPMS System by Touch Screen of DVD (TPMS Optional-Click For Details)

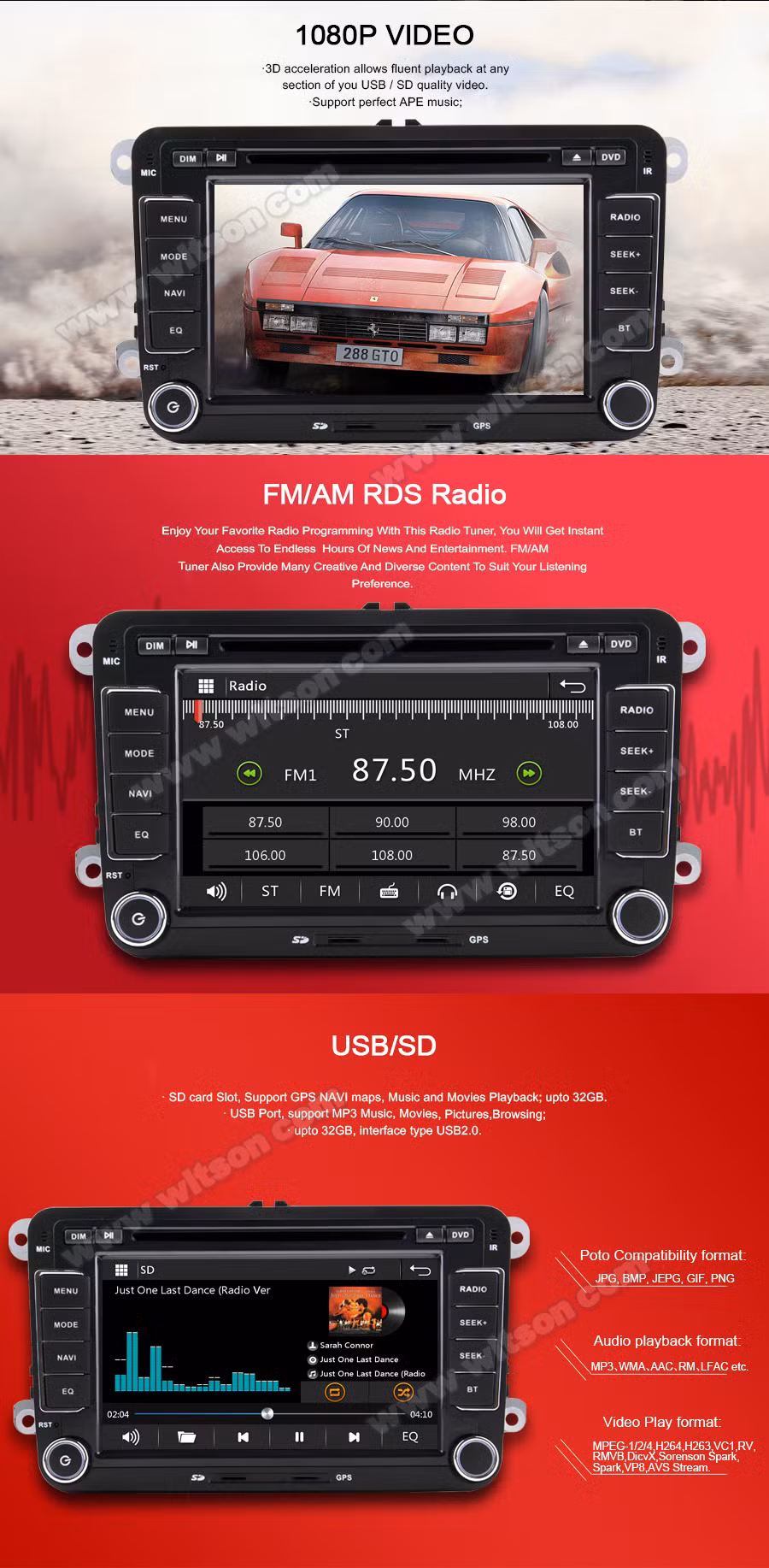

1080P HD Video Display
Support Max 32GB SD/USB/HD
Audio Copy From CD to SD/USB
Auto Rear Viewing Function
FM/AM Tuner /RDS
Bluetooth Function
iPod/iPhone Ready
Built-in HD GPS/Dual Zone System
Unique 3D Flash Graphical User Interface

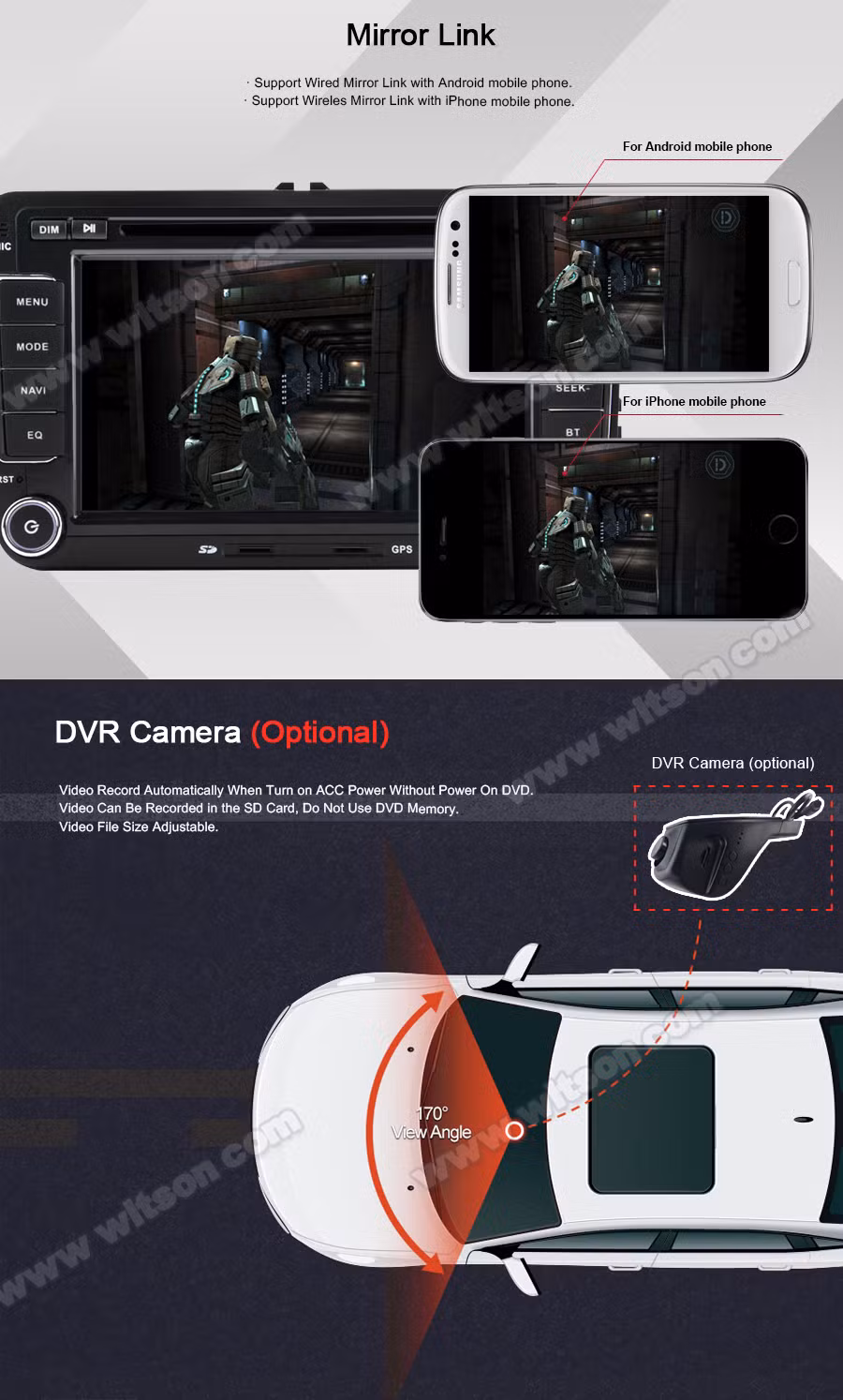

Mirror Link Function
Steering Wheel Control Support
| Configuration | |
| OS | Windows CE 6.0 |
| CPU | Mediatek MT3360 Cortex A11 dual-core |
| RAM | DDR3 256MHz |
| Flash | Built in 128M |
| Touch Screen | Capacitive and multi-touch screen |
| Radio IC | ST7786 FM/AM |
| Amplify IC | ST7388 |
| Out Power | 4*25w |
| Bluetooth Version | 4.0 |
| Microphone | External Microphone |
| DVD deck built-in | Yes |
| SD Card Slot | 2 Channel |
| USB Port | 4 Channel |
| Max External Memory HDD | 32GB |
| WIFI/3G | Built-In WiFi Module /Support External 3G Dongle |
| 4G | No |
| Mirror link | Yes |
| CANBUS | Yes |
| Button Back Light | Multi-colour button light |
| Display Screen | |
| Video Decode Support | 1080P |
| Resolution | 800x480 |

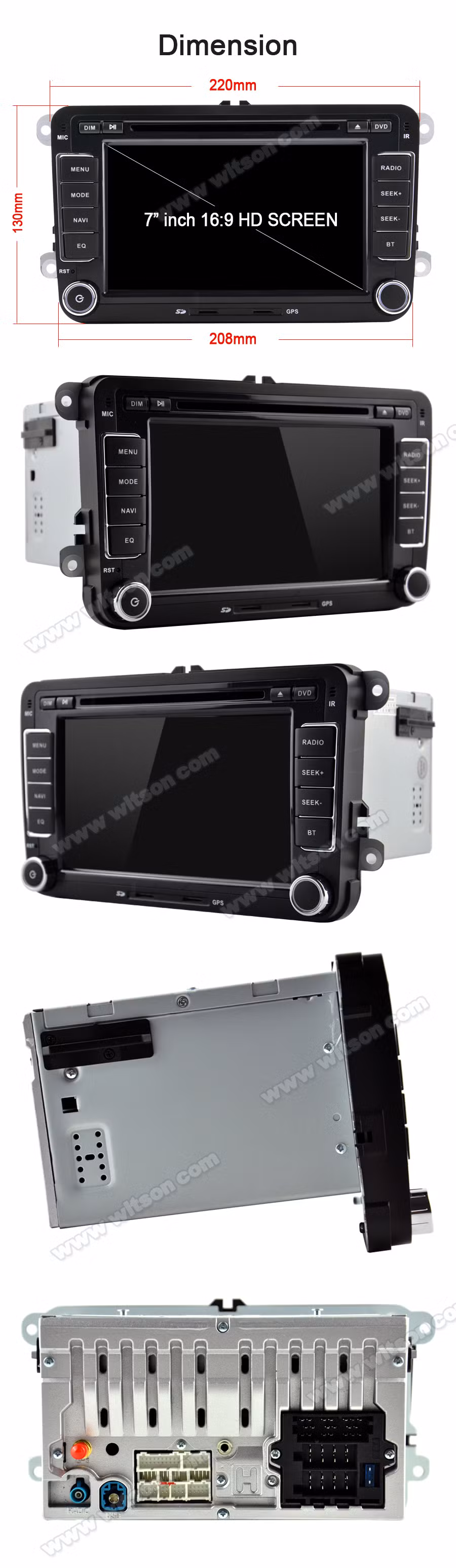

| Screen Dimension | 7 inch 16:9 |
| Video & Audio | |
| Video Input | 1-Channel RCA Input |
| Video Output | 2-Channel RCA Output |
| Audio Input | 2-Channel RCA Input |
| Audio Output | 4.1Channel RCA Output |
| Reverse Camera Input | Yes |
| Other Functions | |
| Pictrue In Pictrue | No |
| Steering Wheel Control Function | Yes |
| Carplay Dongle (USB Port) | Optional |
| DVR Camera (USB Port) | Optional |
| OBD Adaptor (Bluetooth) | Optional |
| DAB+ Receiver (USB Port) | Optional |
| TPMS Adaptor (USB Port) | Optional |
